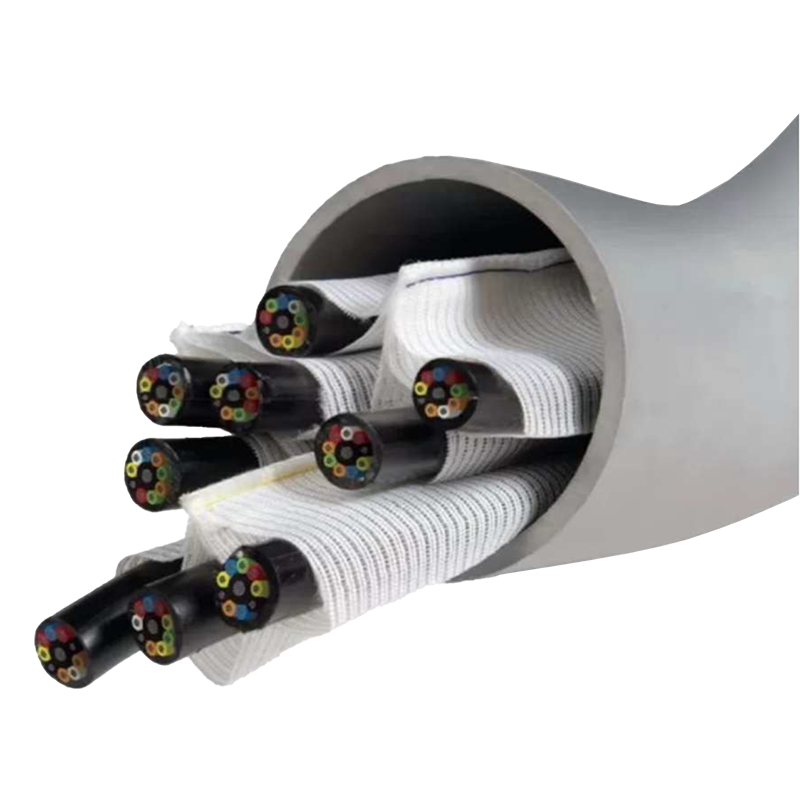

BCP 3.00” Fabric Innerduct is an innovative, flexible pathway system designed to maximize cable capacity in conduit and duct space. Our woven fabric construction provides exceptional durability and flexibility, making it ideal for a wide range of network installations.
Already bought this product from us? Share your experience on LinkedIn
- The pathway diameter is 3.00 inches.
- It is recommended for use with duct sizes of 4.00 inches and larger.
- The maximum pulling tension is 300 pounds.
- The product is black with a white tracer for visibility.
- It is made from woven polyester mesh.
- It operates effectively in temperatures ranging from -30°C to 85°C.
- The material is flame retardant.
- It offers high resistance to UV exposure.
- Cable capacity should be referenced in the accompanying chart.
- It is compatible with standard splice closures.
- LAN and WAN Applications
- Ducts and harsh environments
- FTTx & Telecom
| Product Code | BCMXE6428 |
| Pathway Diameter | 3.00″ |
| Recommended Duct Size | 4.00″ and larger |
| Max Pulling Tension | 300 lbs |
| Color | Black with White Tracer |
| Materials | Woven Polyester Mesh |
| Temperature Range | -30°C to 85°C |
| Flame Retardant | Yes |
| UV Resistance | High |
| Cable Capacity* | See chart below |
| Splice Closure Compatibility | Compatible with standard closures |
| Custom Print | Available upon request |
Cable Fill Chart (Typical):
| Cable OD (inches) | Estimated Cables per Pathway | Cable Type | Notes |
| 0.25 | 9 | Standard Fiber | – |
| 0.35 | 6 | Outdoor Cable | – |
| 0.50 | 3 | Heavy Jacketed | – |
| 0.60 | 2 | Armoured | – |
*Cable capacity is approximate and dependent on cable type, flexibility, and pulling methods. BCPrecommends conducting a field trial prior to installation to confirm suitability.
