- Test 4 types of cables: RJ-45, RJ-11, USB and BNC. Test installed wiring or patch cables
- Tests shielded (STP) or unshielded (UTP) LAN cables
- Test shields in USB cables
- Can test from 2 remote points
- Beeper provides audible annunciation of test results
- Remote unit stores in the Main unit
- BNC terminator 25/50 Ohm indications
- Straight or crossover indications
- LEDs indicate connections and faults of wire and pins
- RJ-11/RJ-45 are equipped with 50u gold plating. 300 feet test distance (RJ-45/RJ-11/BNC)
- Ergonomic portable handheld design
- Powered by a 9V Alkaline battery (not included)
- Convenient battery access
- Low Battery Indicator
- Simple one-button test
- Fast speed testing
- With a soft leather bag for carrying
- High quality warranted
- Item dimensions: Approx. 162 x 85 x 25mm (6.38 x 3.35 x 0.98 inch)
- Item weight: 164g (Battery excluded)
- Package Dimensions: 225 x 110 x 43mm
- Package Weight: 215g

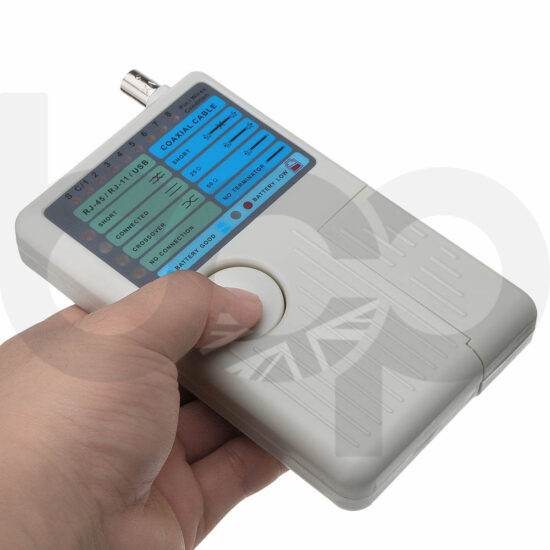

LAN Tester BNC/RJ11/RJ45 Fault Detector
Cable Tested: UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568); RJ-11 cables with male connectors, 2 to 6 conductors installed; USB cables with Type A flat plug on one end and type B square Plug on other ends; BNC cables with male connectors
Faults Indicated: No Connections, short circuit, Opens and Crossover
| Port 1 | 45 (RJ45) |
|---|---|
| Port 2 | 11 (RJ11) |
| Port 3 | U (USB) |
| Port 4 | B (BNC) |
| Product | FLT |
| Colour | BLK, GRY, RED, WHT |
| Model | 1, 2, 3 |
