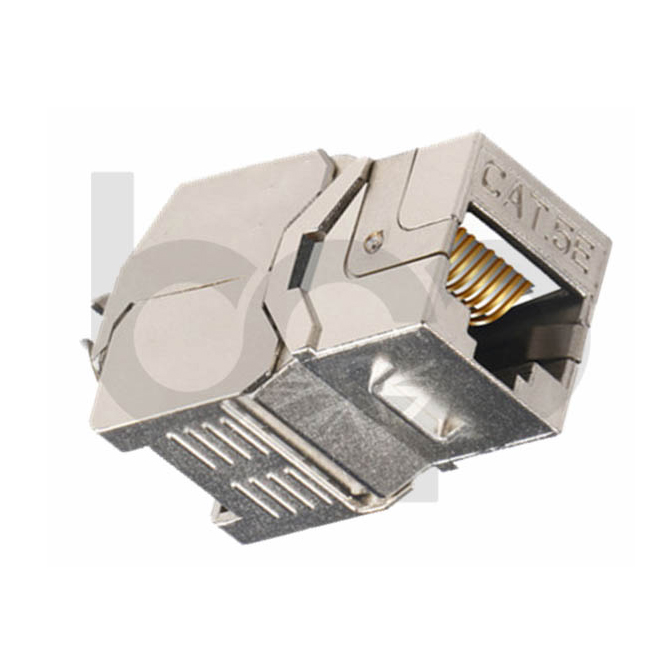

Cat 5E Keystone Jack – STP Tool-Free 180° (4)

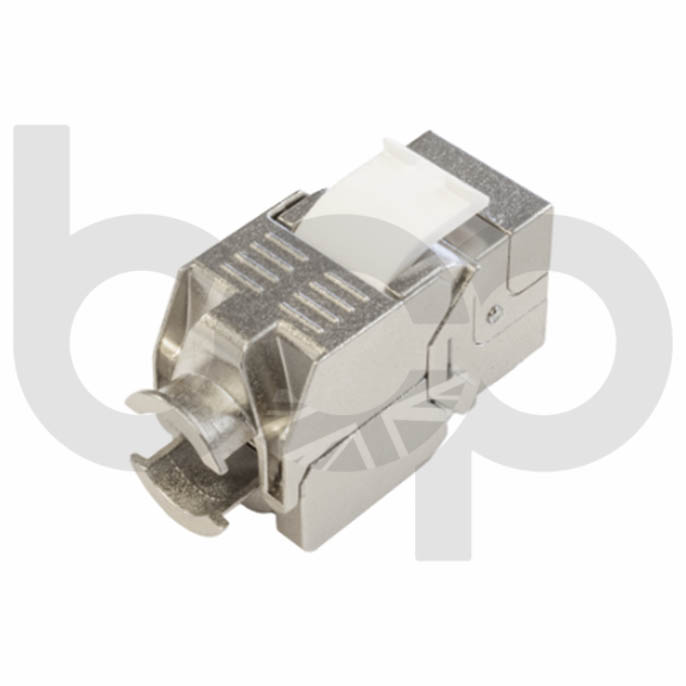

Cat 5E Keystone Jack – STP Tool-Free 180 back

Cat 5E Keystone Jack – STP Tool-Free 180°

Name: Cat 5E Keystone Jack – STP Tool-Free 180°
SKU: STPC5ETJ180SLV-E
Availability: InStock

Britanic Cabling Production Category 5E Tool-Free Screened STP Keystone jack Modules are designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards available in a choice of 180° shuttered and non-shuttered. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL Component Verified.

Construction

Category

Type

Jack Style (degree)

Colour

Standard

Additional

Clear

Add to wishlist

Example PN: STPC5ETJ180SLV-E Categories: Cat 5e, Keystone Jacks

general information
Additional information

High-temperature thermoplastic housing
Compact design, 8 positions and 8 conductors
Low attenuation loss, high return loss
Accepts 22-26 AWG solid wires with an insulation diameter of 0.4-0.6mm
180° module

POTS, T1&Tq fractional
ASDN basic & primary rate
4/16 Mbps Token Ring (IEEE802.5)
10 BASE-T (IEEE802.3)
100 Mbps TP-PMD
52/155 Mbps ATM (ATM Forum)
100 BASE-T4 (Fast Ethernet)
100 VG-Any LAN (IEEE802.12)
100 BASE-T (Fast Ethernet)

Insertion Life	750 cycles minimum
IDC Life	200 times (22-26 AWG solid wire) minimum
Contact Material	Phosphor Bronze, Gold Plating (0.5mm)
IDC Material	Phosphor Bronze stamp pin (0.35mm)
Housing Material	PC UL94V-0
Conformance	EIA/TIA 568A/B wiring standards, ISO/IEC 11801:2002, EIA/TIA 568B.2.1:2002, RoHS

DOWNLOAD DATASHEET

Construction	UTP, STP
Category	C5E
Type	KJ (Keystone Jack), IC (Inline Coupler), TJ (Tool Free KSJ), PT (Pass-Through), WJ (Waterproof KSJ Coupler), 36 (360-degree), LJ (Locked), SJ (Shuttered), SL (Shuttered & Locked), TL (TF and locked), TS (TF and shuttered)
Jack Style (degree)	180, 90
Colour	SLV, BLK, GRY, WB
Standard	-E (Extra Range), -P (Platinum)
Additional	OD (Outdoor), Blank if Indoor

Cat 5E Keystone Jack – STP Tool-Free 180°
