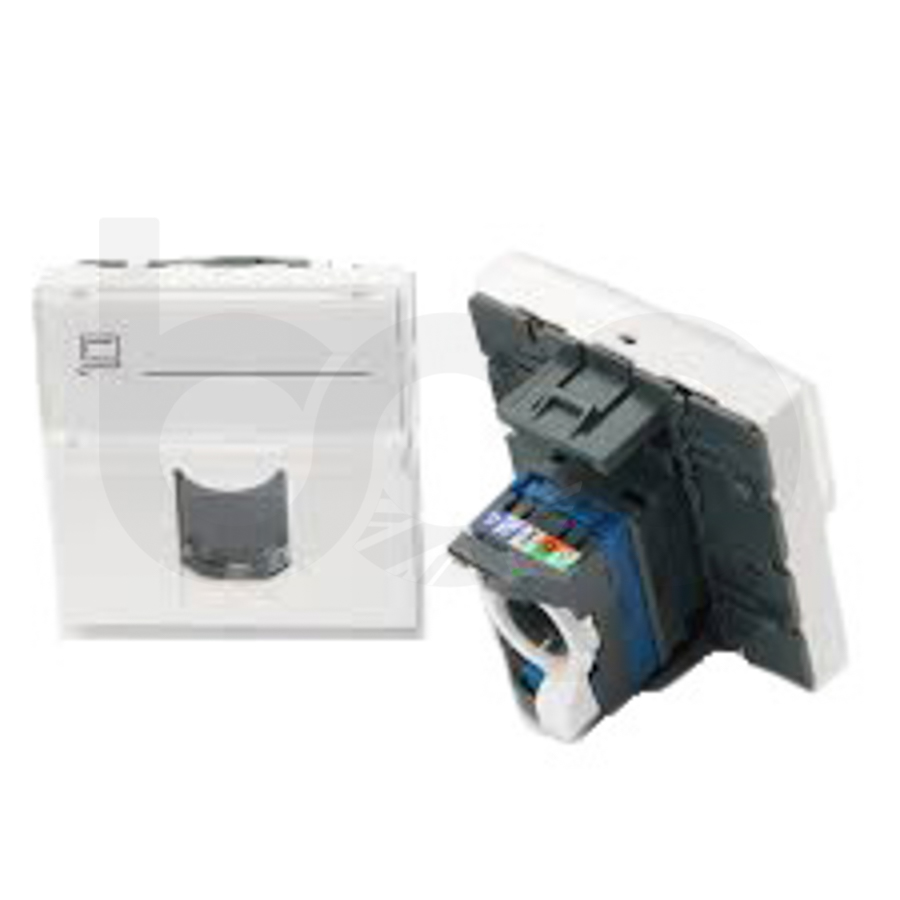

Briticom™ Category 6 Screened UTP Moulded Euro module come as compact designed Keystone jacks in a module offering 360° screening. 180° tool-free use allow a very friendly and very easy-quick installation for professionals. This Cat 6 UTP Module deliver reach & exceed Category 6 Class performances supporting all applications detailed and proposed within the standards. The superior performance of these jacks is 3P Channel Verified. This Cat 6 UTP Module can be used in conjunction with various Cat6 Patch Cords and Cat 6 Cables.
Already bought this product from us? Share your experience on LinkedIn
- Full Cat6 performance 2.5Gbps
- 360° screening
- Compact and small shell
- 25 Years Warranty
- Available in different colours
- Data centre & Telecommunication networks
- LAN & Home Applications
- CATV – Cable television, CCTV
- Call centres, offices, banks
| Specifications | ISO/IEC 11801 2nd edition:2002 EN50173:2007 ANSI/TIA/EIA‐568‐B.2 |
| Wiring Specs | T568A & T568B |
| Dimensions | 16.3mm(W) x 38mm (D) x 21mm (H) |
| Installation Recommendation | Suits All type of RJ45 Face-Plates & empty RJ45 patch panels or Equipment |
| RJ45 Jack | Min life 750 insertions |
| RJ45 Jack | 50um Gold Plated contact pins |
| NEXT at 500MHz | Category 6 39.1dB @250MHz (Power Sum) |
| EL FEXT at 500MHz | Category 6 27.0dB @250MHz (Power Sum) |
| Storage Temperature Range | ‐40 to +70°C (Power Sum) |
| Operational Temperature Range | 10 to +60°C (Power Sum) |
| Jack Housing | Zinc Die-Cast alloy fully shielded |
| Front Frame | 80×80 or 80×125 |
| Empty Module | 22.5×45 or 45×45 |
| Insertion Force | 30N Max (IEC 60603-7-5) |
| Rear Support | Plastic UL94 V0 |
| Colour | White |
| White Label Space | Yes |
| Dust Cover | Yes |
| Number of Ports | 1 ~ 2 (80×80)mm or 1 ~ 4 (80×125)mm |
| Outlet Direction | Flat / Angled |
