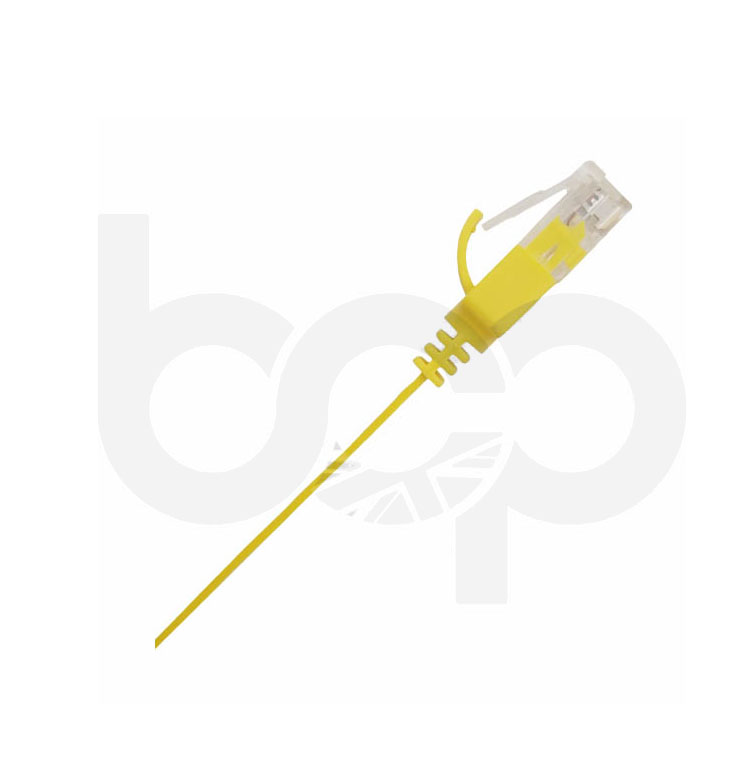

Cat 6a Patch Cord – U/UTP Ultra-Flat

Name: Cat 6a Patch Cord - U/UTP Ultra-Flat
SKU: UUTPC6AYEL20PVU-P
Availability: InStock

Britanic Cabling Production Category 6A Screened Foiled FTP Patch Cord is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL Component Verified

Construction

Category

Colour

Length (m)

Material

Detail

Standard

Additional

Clear

Add to wishlist

Example PN: UUTPC6AYEL20PVU-P Category: Patch Cords

general information
Additional information

U/UTP 34 AWG stranded cable OD 1x4mm
70% Lighter and 50% smaller
Increased flexibility
ANSI/TIA-568-C.2 Standard of 2009
ANSI/TIA-568.0-D Standard of 2017
Available in 0.3m-20m lengths

Data centres
Smart home
Office

Bandwidth	500MHz
Sheath	PVC
Outside Diameter	1x4mm
Construction	U/UTP
AWG	34 AWG
Conductor	Stranded Copper
Frequency	10Gbps
Plug	RJ45 50U gold plated
Certification	UL, CE, SGS, ISO9001, RoHS, REACH
Length	0.3m-20m
Wiring Scheme	T568B/T568A
Boot Type	Moulded short-body plug
Connector	RJ45 8P8C 3u~50u
PC Rated	94-V2; 94-V0
Colour	Grey, green, red, yellow, blue, black, white, pink, orange, purple

DOWNLOAD DATASHEET

Construction	UUTP, FUTP, SFTP, FFTP, UFTP
Category	C5E, C6, C6A, C7, C7A, C8
Colour	BLK, GRY, WHT, ORN, PRL, GRN
Length (m)	3, 5, 10, 15, 20
Material	HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene)
Detail	F Flat, A Angled Boot, L Locked, D Light, M Micro size, R Rodent-Resistant, S Self-Tracing, T Tangle-Free, U Ultra-Flat, Blank if no extra detail
Standard	-E Extra Range, -P Platinium
Additional	OD Outdoor, Blank if indoor
