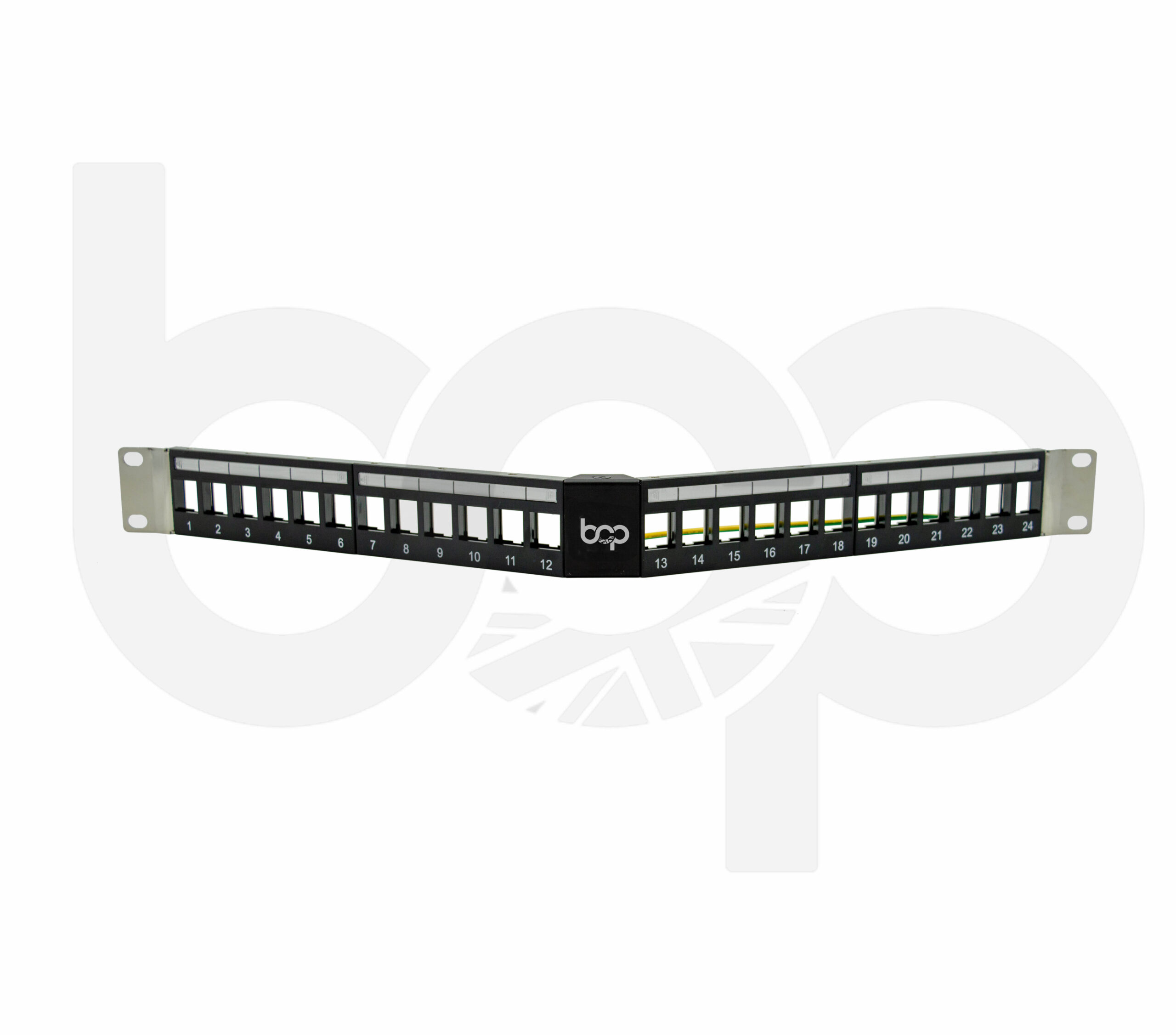

EMPTY PATCH PANEL 1U – V1 STP 1U 24 PORT FOLDABLE

Empty Patch Panel – V-Foldable 24 Or 48 Port Modular 1U Model 01 (2)

Empty Patch Panel – V-Foldable 24 or 48 Port Modular 1U Model 01

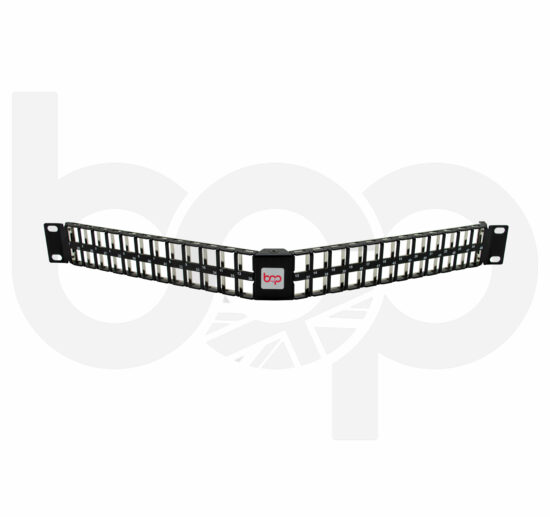

Name: Empty Patch Panel - V-Foldable 24 or 48 Port Modular 1U Model 01
SKU: EMUTPKFV24BLK1U
Availability: InStock

Britanic Cabling Production Professional V-Design 24 or 48-ports Foldable Patch Panel offers a perfect solution for high density applications. As the panel is angled you can manage 12 patch cords easy from both sides, so there is a better cable management inside of the rack.

Empty

Construction

Product

Port Density

Colour

Unit

Clear

Add to wishlist

Example PN: EMUTPKFV24BLK1U Category: Empty Patch Panels

general information
Additional information

V-Design for better patch cord management
Rear bar for tidier cable management

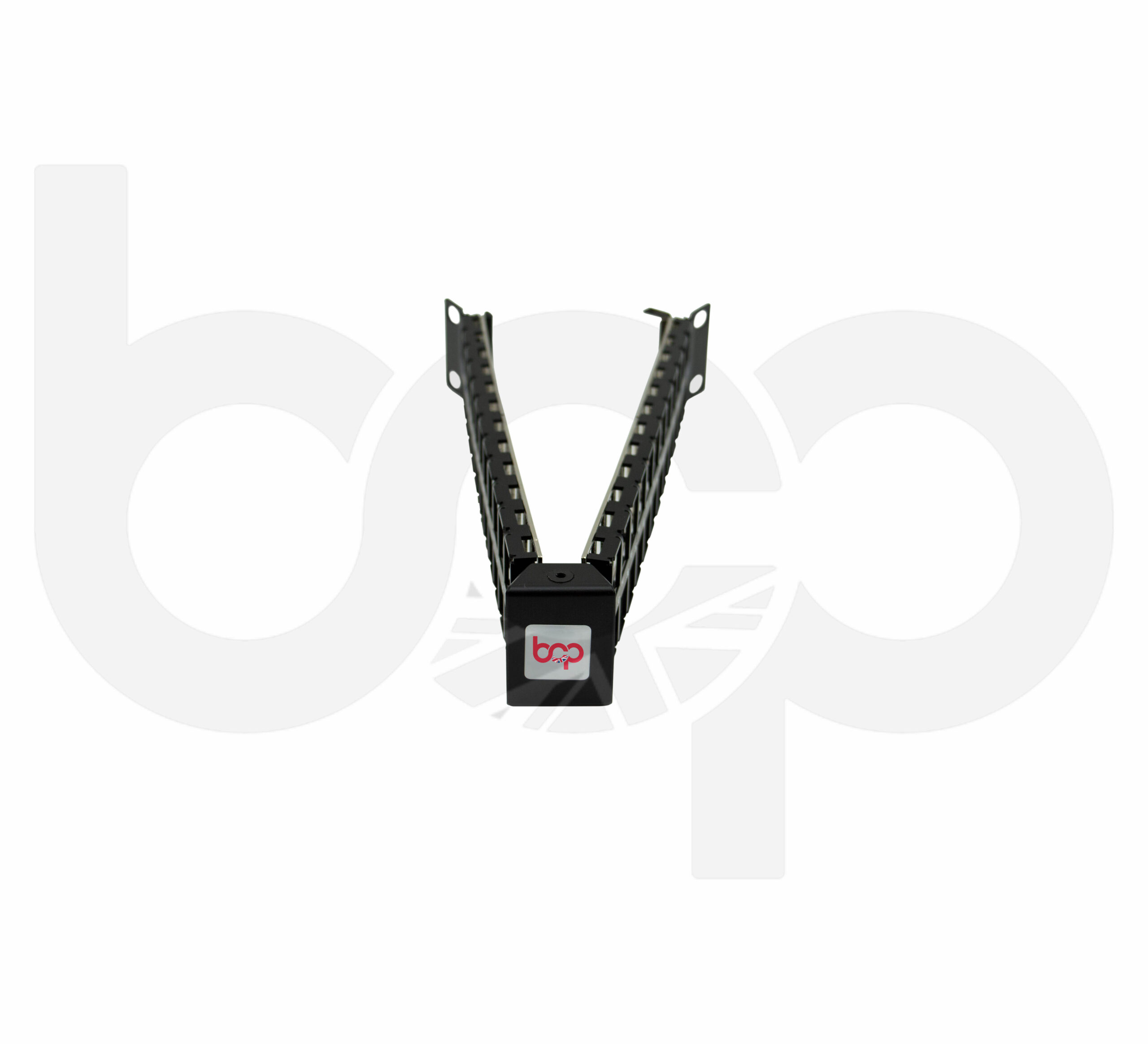

Foldable makes it space-saving on shipping
24 or 48 modular ports
Earthing/grounding
Available in 1U, 0.5U, and with Shutters

Data & Server Racking
Cat 5e, Cat 6 & Cat 6a RJ45 Modular Jacks
Data Centres & LAN installations

Norms	ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
Housing material	1.5 mm SPCC cold rolled steel sheet, powder-coated
Material standard	EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, ASTM, SAE, NFA 36/401
Grounding	Central ground connection
Operation Temperature	-20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

DOWNLOAD DATASHEET

Empty	EM
Construction	UTP (UTP), STP (STP)
Product	PP (IDC/PCB Panel), KP (KSJ Panel), VP (V-Shaped), FP (Foldable), FV (Foldable V-Shaped), SP (Shuttered Ports), CF (Coloured Front), CS (Coloured Shuttered), MF (Modular Flat), MV (Modular V-Shaped), LT (Light-Tracing), IG (Intelligent), IV (Intelligent V-Shaped), KV (KSJ V-Shaped), KVS (KSJ V Shuttered), KFV (KSJ Foldable V), KMF (KSJ Modular Flat)
Port Density	1-24, 24, 48
Colour	BLK
Unit	0.5U, 1U, 2U, 3U, 4U

Empty Patch Panel – V-Foldable 24 or 48 Port Modular 1U Model 01
