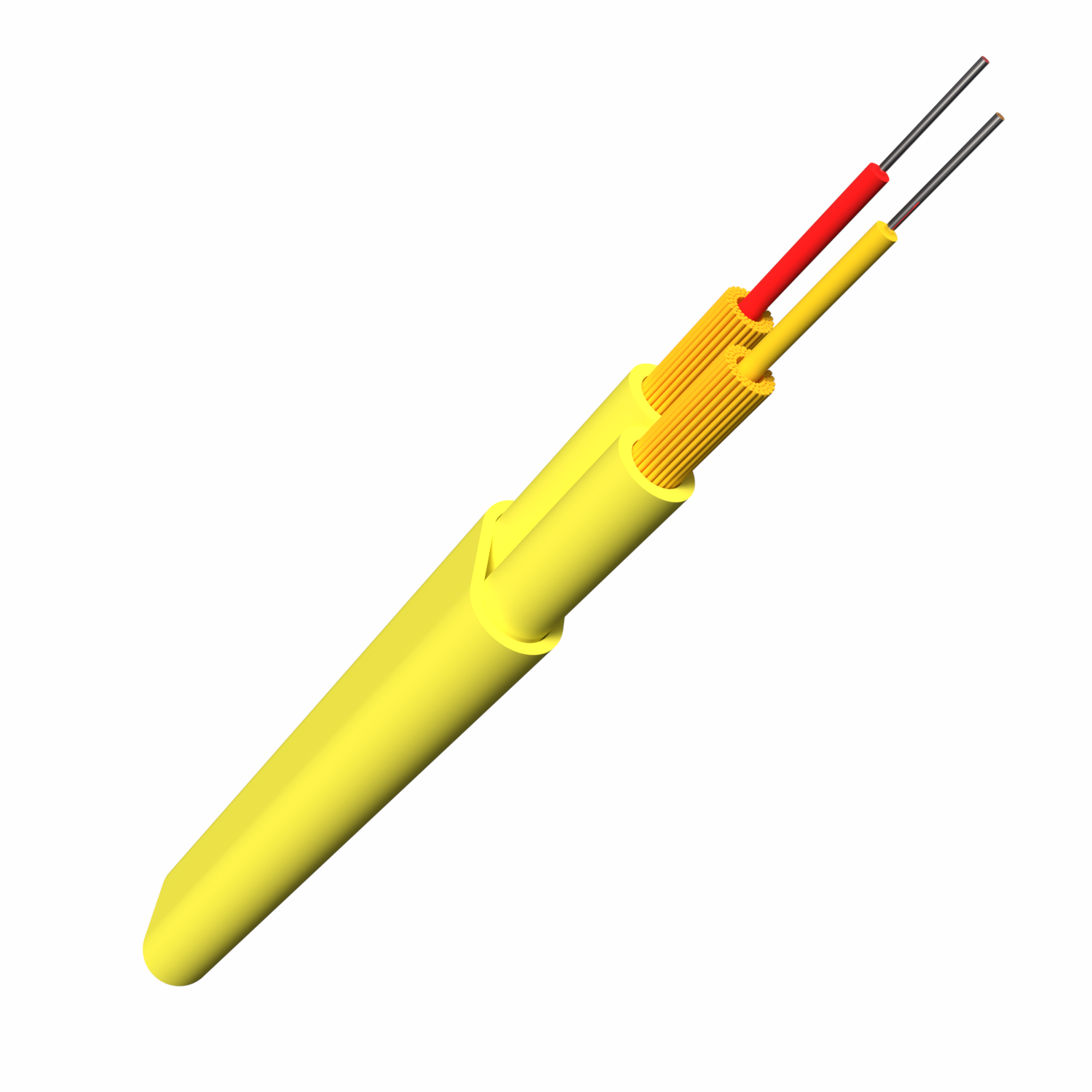

BCP® Flat Duplex Patch Cord OS2 is made of two simplex units, covered with an overall outer jacket. It is ideal for use in office LAN environment and internal point-to-point links where frequent re-usage is likely to take place (equipment rooms, data cabinets , …etc.). Using 900µm buffered fibre, the cable unit is suitable for use with industry standard connectors.
Already bought this Flat Duplex Patch Cord OS2 from us? Share your experience on LinkedIn
- Choice of fibre types
- High intensity aramid yarn strength members for
comfort of handling - Ripcord for easy removal of outer jacket
- Easy strip
- Individually coloured blue and orange simplex
cable subunits - PVC or LSZH inner jacket & PVC or LSZH outer
jacket - Indoor / Outdoor use
- Telecommunication networks
- Data centres
- For use in 1-10Gb/s networks
- CATV – Cable television
- Fibre-to-the-Home – FTTH
| Details | Unit | Value |
| Crush | N/100mm | 1000 |
| Strength Member | Material | Aramid |
| Nominal Outer Dimension | mm | 3.0*5.0 |
| Maximum Tensile Load (installation) | N | 250 |
| Maximum Tensile Load (installed) | N | 125 |
| Maximum Bend Radius (installation) | Times Diameter | 20 |
| Maximum Bend Radius (installed) | Times Diameter | 10 |
| Fire Performance | – | LSZH |
| Drum Length | km | 2 |
| Nominal Weight | kg/km | 11 |
| Fibre Count | n | 2 |
| Storage Temperature | °C | -20 to 60 |
| Installation Temperature | °C | -5 to 50 |
| Operating Temperature | °C | -20 to 60 |
| Zero Dispersion Wavelength (nm) | 1312 ± 22 | |
| Attenuation (dB/hm) | ≤ 0.32 @ 1310nm / ≤ 0.18 @ 1550m | |
