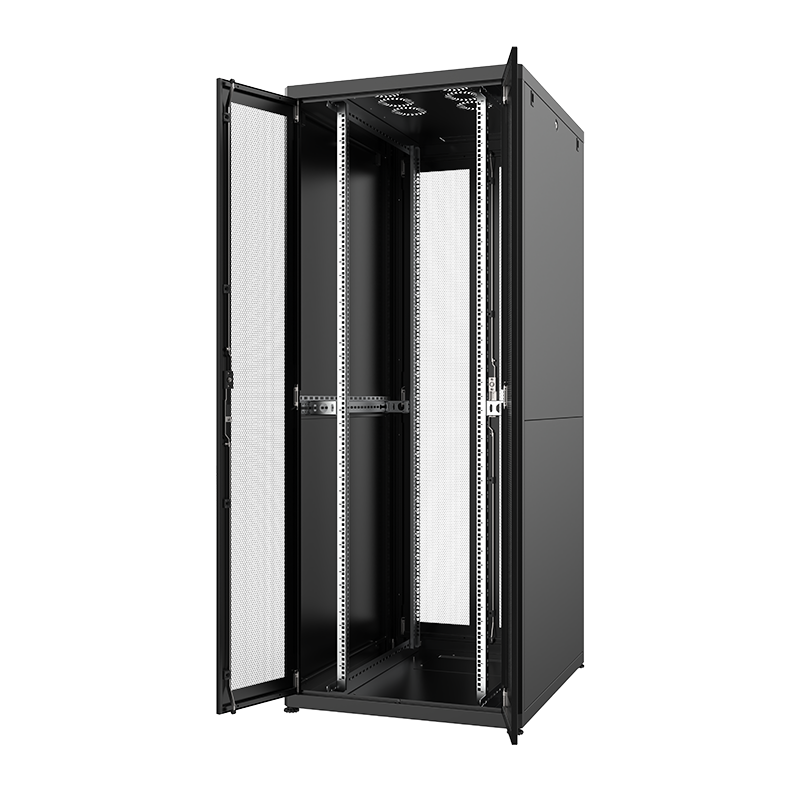

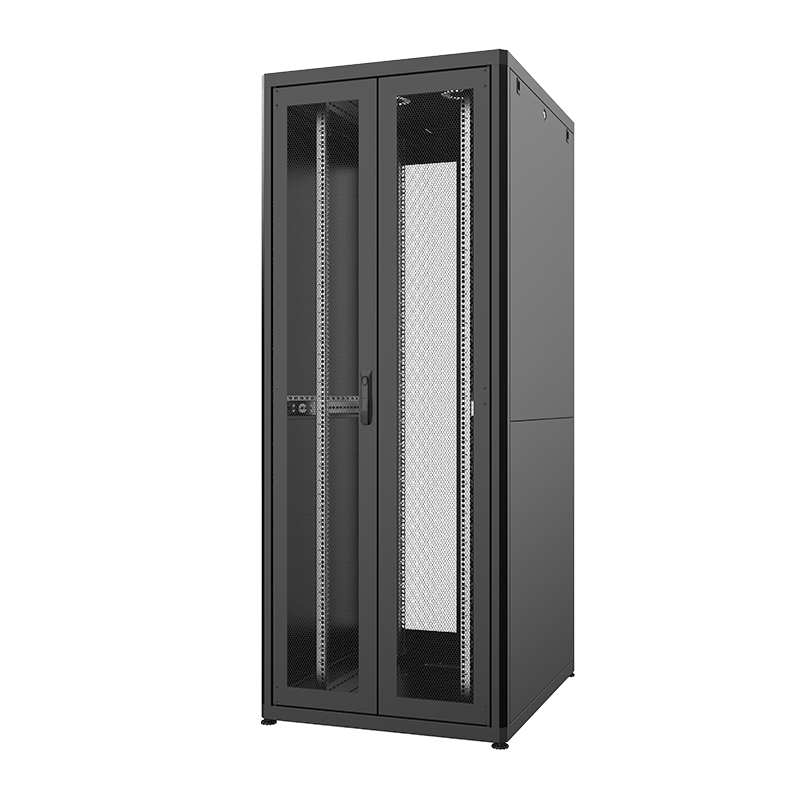

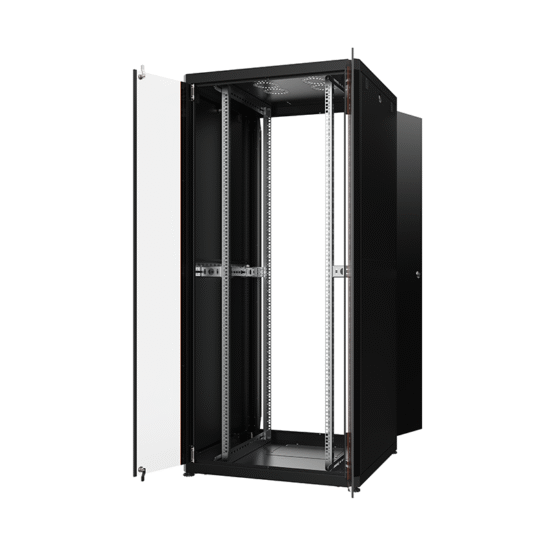

Briticom® Floor Standing Racks are ideal enclosures for data cabling and server housing and enabling the management or the connection of cables and cable ends. They are widely used in Datacomms applications as well as Telecom and data centre installations.
Already bought this product from us? Share your experience on LinkedIn
- IP Rating is available
- Grounding & earthing kits
- Thick and robust construction, 1000kgs UDL
- Easy & quick assembly
- Rotating front door, opens at 200°
- Easily removable side doors with latches (optional locks on side doors)
- Vented cabinet for better airflow and vented roof ready for fan tray/unit
- Various colours and configurations available
- Conforms to EIA-310 standard
- Telecom
- Large networks
- LAN, MAN and WAN applications
Floor standing racks
| Materials | 1.0 to 2.0 mm cold-rolled steel, powder-coated, vented or zinc-plated depending on cabinet part |
| Loading Capacity | 800 kg |
| Rack Space | 42U |
| Dimensions | 2000 x 800 x 600 mm (various configurations available) |
| Parts | Materials | Surface |
| Top Cover | SPCC t. 1.2mm | Powder Coated |
| Frame | SPCC t. 1.5mm | Powder Coated |
| Front Door | SPCC t. 1.5mm | Various |
| Side Panel | SPCC t. 1.2mm | Powder Coated |
| Rail | SPCC t. 2.0mm | Powder Coated |
| Mounting Plate | SPCC t. 1.5mm | Powder Coated |
| Back Panel | SPCC t. 1.2mm | Powder Coated |
