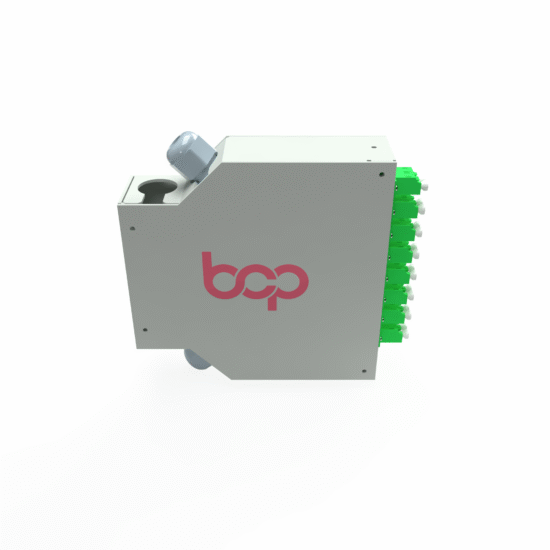

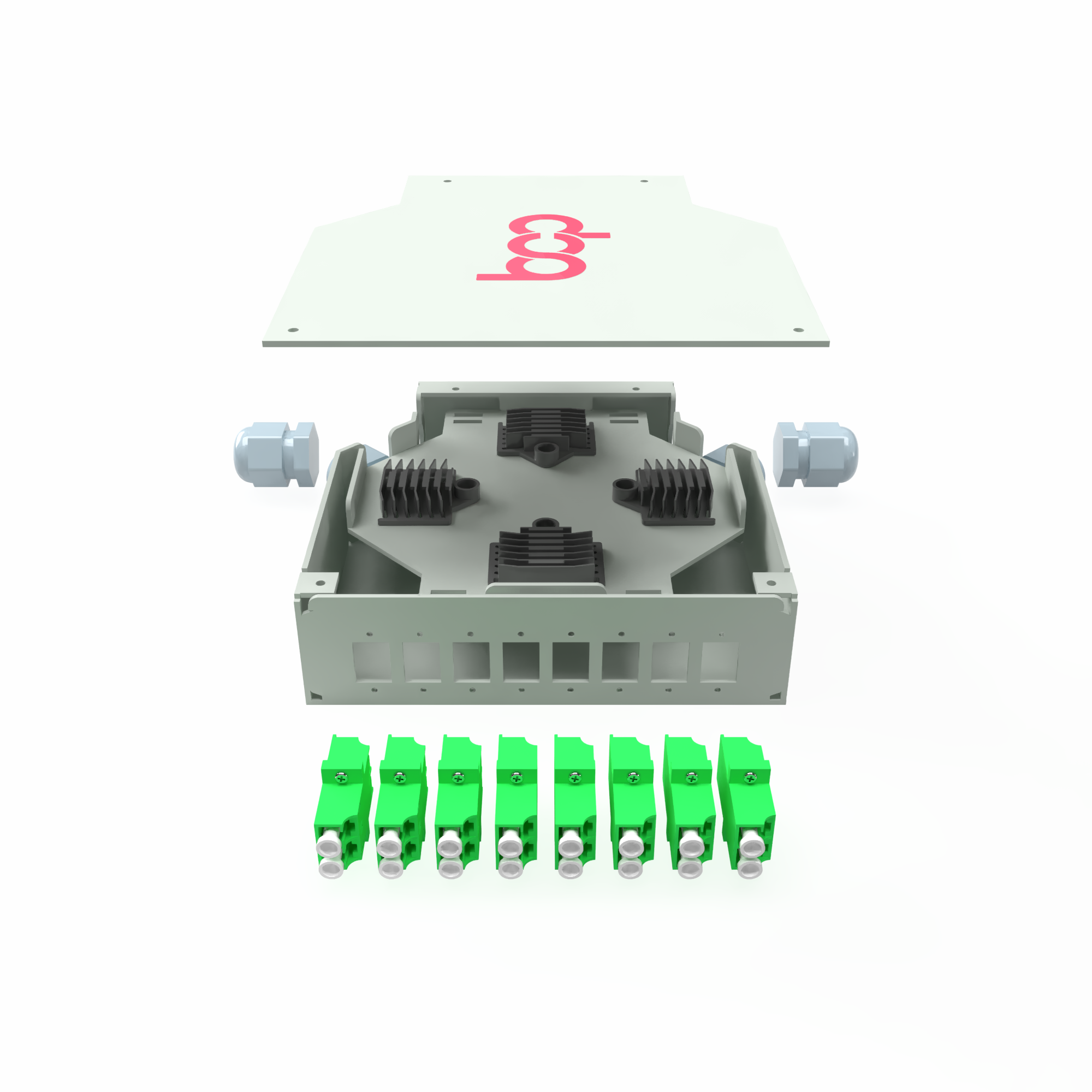

BCP® DIN Rail Subscriber Terminal Box for fibre optic distribution and termination can be used for the easy-access and distribution of fibre optic connections between networks. This model is suitable for pigtail, ribbon and cable distribution with a sturdy IP40 design and 4 cable entries. No special tools are required for this box and it is designed to protect fibres in the field. This subscriber terminal box is perfect for wall mounted applications and has an operation temperature from -40℃ to +70℃ making it suitable for a wide range of environments. Briticom® offers a wide range of Distribution Boxes as well as various Fibre Management equipment to suit all your fibre solutions.
Already bought this product from us? Share your experience on LinkedIn
- 16 FO
- Sturdy IP40 design
- 4 cable entries
- Suitable for pigtail, ribbon and cable distribution
- 19” DIN rail
- Wall-mounted applications
- No special tools required
- Protects fibres in the field
- Telecommunication networks
- CATV – Cable television applications
- Fibre To The Home (FTTH)
DIN Rail Subscriber Terminal Box
| Dimensions (mm) | 125 x 344 x 130 |
| Weight (kg) | Varied (Loaded / unloaded) |
| Cable entry ports | 4 entries |
| Material | Steel |
| Operation Temperature | -40℃ to +70℃ |
| Installation Temperature | -40℃ to +70℃ |
