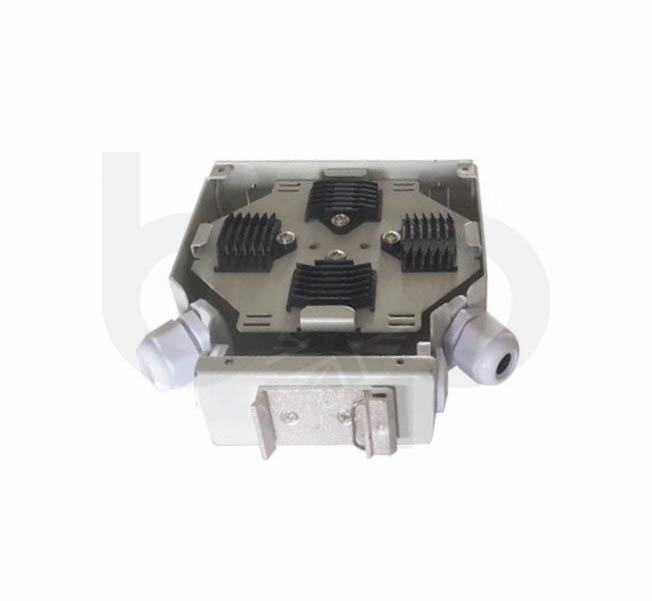

Indoor DIN Rail Subscriber Terminal Box – Metal – Model 04 – 12 FO

Name: Indoor DIN Rail Subscriber Terminal Box - Metal - Model 04 - 12 FO
SKU: ITB04MSTUDX12
Availability: InStock

Britanic Cabling Production FO distribution and termination boxes are used for the easy-access and distribution of fibre optic connections between networks.

Product

Model

Material

Adapter Type

Polish Type

Capacity

No of Fibres

Additonal

Clear

Add to wishlist

Example PN: ITB04MSTUDX12 Categories: Distribution Boxes, Indoor Terminal Boxes

general information
Additional information

12 FO
Sturdy IP40 design
4 cable entries
Suitable for pigtail, ribbon and cable distribution
19” DIN rail
Wall-mounted applications
No special tools required
Protects fibres in the field

Telecommunication networks
CATV – Cable television
Fibre-To-The-Home (FTTH)

Dimensions (mm)	125x344x130
Weight (kg)	Varied (Loaded/unloaded)
Cable entry ports	4 entries
Material	Steel
Operation Temperature	-40℃ to +70℃
Installation Temperature	-40℃ to +70℃

DOWNLOAD DATASHEET

Product	ITB (Indoor Subscriber Terminal Box), IDB (Indoor Distribution Box), OTB (Outdoor Subscriber Terminal Box), ODB (Outdoor Distribution Box), ISB (Indoor Splitter Box), OSB (Outdoor Splitter Box)
Model	01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32
Material	P Plastic, M Metal
Adapter Type	FC, LC, SC, ST, E2, MTP
Polish Type	A (Angled), U (Unpolished)
Capacity	SX, DX, QD
No of Fibres	01, 02, 04, 06, 08, 09, 10, 12, 16, 17, 24, 36, 48, 72, 96, 120, 144, 192
Additonal	/P Pigtails, Blank if unloaded
