BCP’s manhole system is specifically engineered for use in underground distribution networks, with a strong focus on applications in the fiber optic and electrical utility sectors. The system is constructed using advanced, innovative composite materials, offering a modern alternative to traditional concrete manholes.
The BCP® system stands out as a superior solution due to its combination of strength, lightweight structure, and flexibility. These features not only simplify transportation and installation but also significantly reduce both time and overall project costs. As a result, it provides a highly efficient and cost-effective choice for modern infrastructure needs.
Already bought this product from us? Share your experience on LinkedIn

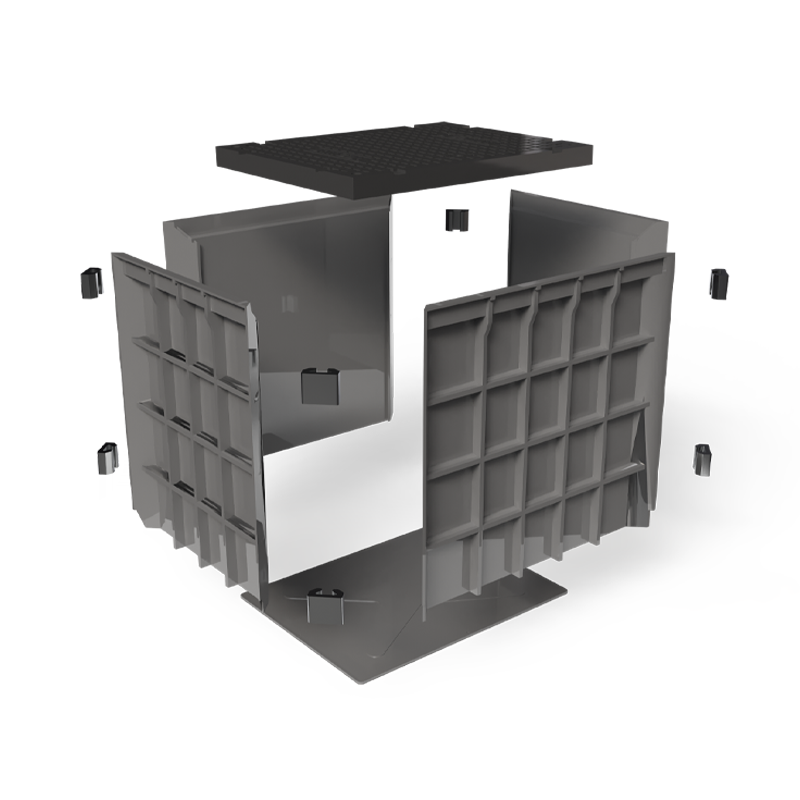

- Modular design allows for compact knock-down delivery and easy on-site assembly
- High-strength, lightweight composite construction for easier handling and installation
- Cost-efficient solution thanks to reduced transportation and labor needs
- Customizable duct access with pre-provided entries and flexibility to drill as needed
- Durable and reliable, meeting SCTE-77 Tier 22 standards for structural performance
- Infrastructure
- Telecom operators and internet operators
- Developers
- Networks of public initiatives
| Model 02 | Manhole | Cover |
| Load Bearing | SCTE-77 Tier22 | SCTE-77 Tier22 |
| Internal size | 750 x 450 mm | 810 x 510 mm |
| External size | 840 x 540 mm | |
| Height | 655 mm | 40 mm |
| Weight | 35.6 kg | 34.9 kg |
| Extender kit | Fastening | FastClip |
