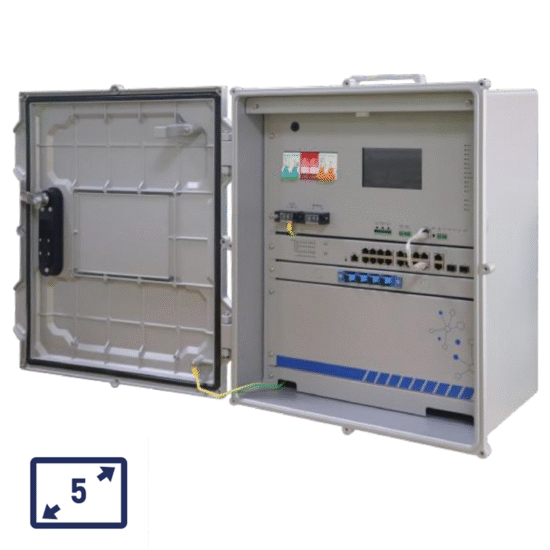

Model 03 is a fully integrated, solar-powered smart box designed for off-grid applications. Built with a durable aluminum alloy enclosure—offering enhanced protection over galvanized materials—it delivers a clean, all-in-one solution for remote power and network management.
Powered solely by solar energy, Model 03 requires only a solar panel and battery connection. During the day, solar input supplies power to both the system and the battery; at night, the battery takes over, enabling continuous, reliable operation without any grid power.
Equipped with a 16-port L2 managed PoE switch and a 5-inch LCD touchscreen, the unit allows local configuration such as DC output control and IP settings. The display provides real-time system data, including power input/output, battery and solar status, device IP, and alarms—making local management simple and efficient.
The box includes a dedicated, enclosed battery holder for a cleaner internal layout. Like other models in the series, it supports our V5 software platform for remote monitoring and system control. With an operating temperature range of -20°C to 70°C, Model 03 is ideal for rugged, off-grid environments.
Already bought this product from us? Share your experience on LinkedIn
- The material is Aluminium alloy, different from Galvanized.
- All in one solution
- Smart control card with software
- Support our V5 software platform for customers to monitor and managed the outdoor boxes, check the outdoor box working status.
- Solar input, customer only need to connect with solar panel and battery, then can used in the no power application; At the day time, the solar will power for the whole box and battery. At the night time, the battery will power for the whole box.
- Integrated the 16 ports L2 managed PoE switch inside.
- Integrated the 5 inch LCD touch screen inside, for the touch screen, you can do some simple setting in the screen with your finger, like open/close DC output, revise the IP address. In the screen, it will display box information on it, like box IP address, serial number, solar input information, battery information, input and output, alarm information.
- From the LCD screen, you can get the box information more easier and convenient.
- At the bottom of box, we design a battery holder, and do a panel to cover the battery, it will be more tidy.
- The working temperature is about -20 to 70 degree.
Wall & Pole-Mounted Cabinet
- CCTV, Security, Telecom, Street light, Transportation, Smart City, Base station, Fire alarm, Network solution, Desert, Forest, Subway, Garden, Highway, Access control and so on projects.
| Solar input | Solar battery input, <100VDC (must greater than storage battery voltage) |
| Battery (customer provided) | Support 48V Lithium battery |
| Circuit breaker | 1*AC 2P 10A, 1*DC 2P 16A |
| DC output | DC12V output 3 channels;
Support for remote control of a single channel; Can detect the single circuit voltage and the current in real time |
| RS485 | RS485 |
| RS232 | RS232 |
| Alarm input | 3 channels, dry-connector input;
The first channel is default door opening detection; |
| 10/100 Network port | 1*10/100 Base-TX |
| Reset Key | >5S long press: restore factory settings |
| Screen | 5# touched screen |
| Ratio:800*480 | |
| Battery charging controller | Battery voltage: 48V |
| Input voltage: <DC100V | |
| efficiency: >99% | |
| Rated discharge current: 20A
Charging current: 9A max. |
|
| Battery | DC48V lithium battery(customer provided); |
| Operating temperature | -20ºC~70ºC |
| Storage temperature | -40ºC~85ºC |
| Humidity | 0~95%(no condensation) |
| Size(H×W×D) | 533mm×533mm×268mm |
| Material | Aluminium alloy |
| Colour | Gray |
| Net weight | 20kg |
