CAT 5E DATASHEET
FEATURES:

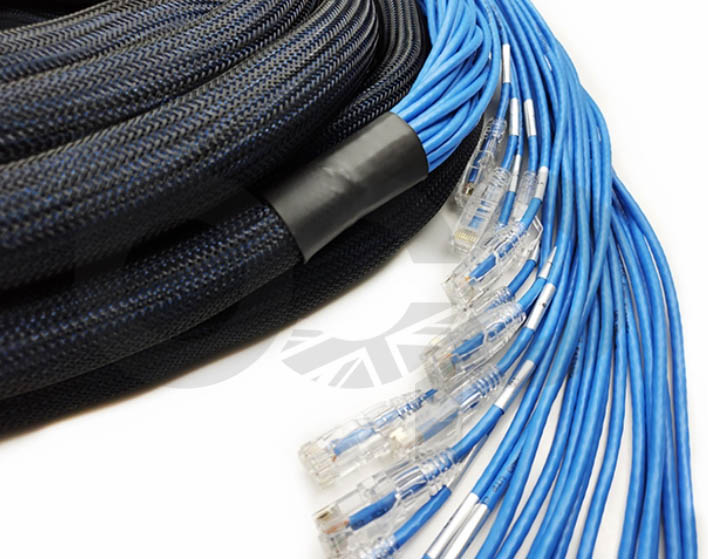

- Cat 5e pre-terminated patch cables
- Fast and easy installation with a 75% reduction in labour costs
- Braided sleeve binding and optional pulling eye ensure a snag-free installation
- Available in STP and UTP
- Different termination types available: KSJ to KSJ, KSJ to plug, plug to plug
APPLICATIONS:
- Data Centre Solution
- Telecommunications Racks
- Quick Network Deployment
TECHNICAL:
| Material | Bare Copper |
| Conductor construction | 1/0.560 ± 0.02 mm |
| Insulation Diameter | 1.04 ± 0.06 mm |
| Jack Type | 8P8C (8-position, 8-contact) RJ45 style Keystone Jack |
| Wiring Scheme | ANSI/TIA-C.2: T5682 |
| Wiring Gauge | 24 AWG |
| Sheath Diameter | 6.3 ± 0.3 mm |
| Jack Insulation resistance | Min. 500 MΩ @ 100 VDC |
| IDC contact resistance | Max. 2.5 mΩ |
| Cable Insulation resistance | Min. 150 MΩ /Km |
| Conductor resistance | Max 9.38Ω / 100m @ 20⁰C |
| Resistance unbalance | Max. 2% |
| Capacitance unbalance | Max. 160 pF/100 m |
| Mutual capacitance | Max 5600 pF/100 m |
| Storage Temperature | -40⁰C ± 70⁰C |
| Operating Temperature | -10⁰C ± 60⁰C |
CAT 6 DATASHEET
FEATURES:
- Cat 6 pre-terminated patch cables
- Fast and easy installation with a 75% reduction in labour costs
- Braided sleeve binding and optional pulling eye ensure a snag-free installation
- Available in STP and UTP
- Different termination types available: KSJ to KSJ, KSJ to plug, plug to plug
APPLICATIONS:
- Data Centre Solution
- Telecommunications Racks
- Quick Network Deployment
TECHNICAL:
| Material | Bare Copper |
| Conductor construction | 1/0.560 ± 0.02 mm |
| Insulation Diameter | 1.04 ± 0.06 mm |
| Jack Type | 8P8C (8-position, 8-contact) RJ45 style Keystone Jack |
| Wiring Scheme | ANSI/TIA-C.2: T5682 |
| Wiring Gauge | 24 AWG |
| Sheath Diameter | 6.3 ± 0.3 mm |
| Jack Insulation resistance | Min. 500 MΩ @ 100 VDC |
| IDC contact resistance | Max. 2.5 mΩ |
| Cable Insulation resistance | Min. 150 MΩ /Km |
| Conductor resistance | Max 9.38Ω / 100m @ 20⁰C |
| Resistance unbalance | Max. 2% |
| Capacitance unbalance | Max. 160 pF/100 m |
| Mutual capacitance | Max 5600 pF/100 m |
| Storage Temperature | -40⁰C ± 70⁰C |
| Operating Temperature | -10⁰C ± 60⁰C |
CAT 6A DATASHEET
FEATURES:
- Cat 6a pre-terminated patch cables
- Fast and easy installation with a 75% reduction in labour costs
- Braided sleeve binding and optional pulling eye ensure a snag-free installation
- Available in STP and UTP
- Different termination types available: KSJ to KSJ, KSJ to plug, plug to plug
APPLICATIONS:
- Data Centre Solution
- Telecommunications Racks
- Quick Network Deployment
TECHNICAL:
| Material | Bare Copper |
| Conductor construction | 1/0.560 ± 0.02 mm |
| Insulation Diameter | 1.04 ± 0.06 mm |
| Jack Type | 8P8C (8-position, 8-contact) RJ45 style Keystone Jack |
| Wiring Scheme | ANSI/TIA-C.2: T5682 |
| Wiring Gauge | 23 AWG |
| Sheath Diameter | 6.3 ± 0.3 mm |
| Jack Insulation resistance | Min. 500 MΩ @ 100 VDC |
| IDC contact resistance | Max. 2.5 mΩ |
| Cable Insulation resistance | Min. 150 MΩ /Km |
| Conductor resistance | Max 9.38Ω / 100m @ 20⁰C |
| Resistance unbalance | Max. 2% |
| Capacitance unbalance | Max. 160 pF/100 m |
| Mutual capacitance | Max 5600 pF/100 m |
| Storage Temperature | -40⁰C ± 70⁰C |
| Operating Temperature | -10⁰C ± 60⁰C |
CAT 7 DATASHEET
FEATURES:
- Cat 7 pre-terminated patch cables
- Fast and easy installation with a 75% reduction in labour costs
- Braided sleeve binding and optional pulling eye ensure a snag-free installation
- Available in STP and UTP
- Different termination types available: KSJ to KSJ, KSJ to plug, plug to plug
APPLICATIONS:
- Data Centre Solution
- Telecommunications Racks
- Quick Network Deployment
TECHNICAL:
| Material | Bare Copper |
| Conductor construction | 1/0.560 ± 0.02 mm |
| Insulation Diameter | 1.04 ± 0.06 mm |
| Jack Type | 8P8C (8-position, 8-contact) RJ45 style Keystone Jack |
| Wiring Scheme | ANSI/TIA-C.2: T5682 |
| Wiring Gauge | 23 AWG |
| Sheath Diameter | 6.3 ± 0.3 mm |
| Jack Insulation resistance | Min. 500 MΩ @ 100 VDC |
| IDC contact resistance | Max. 2.5 mΩ |
| Cable Insulation resistance | Min. 150 MΩ /Km |
| Conductor resistance | Max 9.38Ω / 100m @ 20⁰C |
| Resistance unbalance | Max. 2% |
| Capacitance unbalance | Max. 160 pF/100 m |
| Mutual capacitance | Max 5600 pF/100 m |
| Storage Temperature | -40⁰C ± 70⁰C |
| Operating Temperature | -10⁰C ± 60⁰C |
