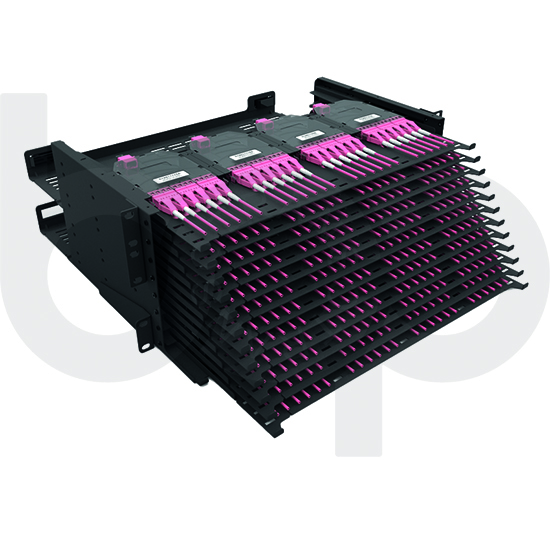

4U LGX Patch Panel – Model 05 – 576 FO

Britanic Cabling Production designs and manufactures unique and robust patch panels. Our patch panels use various technologies for easy access and organisation: these include pivots, sliding on rail and easy sliding. Many of our panels are also modular, to further aid the user.

Add to wishlist
Example PN: LG4U5LCUDXA2576P Category:



  • Standard 19”
  • 576 FO
  • 1.5mm cold rolled steel
  • Front saddles pivot for improved patch cord routing
  • Bend radius guides minimise macro bending
  • Fully assembled loaded or empty
  • 175 adapter interfaces available including ST, SC, FC, LC
  • Splice capacity up to max 48 fibres with splice trays loaded
  • Easy slide in and out
  • Recessed adaptors for improved fibre management
  • No exposed screws
  • Built-in strength member tie positions
  • High-quality finish
  • Modular design for easy organisation
  • Data and server racks
  • FTTx
  • Telecom
Adapter Types MTP in / LC and SC out
Height 4U
Fibre Count 576 FO
Width 19’’
Depth 384mm
Modular Adapter Plates Qty Per Panel 48 (Only MPO faceplates (metal))
Modular Splice Cassettes Qty Per Panel 48
Capacity Per Modular Cassette 6 LC DX
Modular MTP Cassettes Per Panel 48 per panel
Number of Sliding Trays 12 tray each loaded with 4 modular cassettes
DOWNLOAD DATASHEET
Type

LR
Unit

1U, 2U, 3U, 4U
Model

5
Adapter Type

LC, SC
Polish Type

A Angled, U Flat, Fibre management only
Mode

SX, DX
Fibre Type

M Multimode, S Single-mode, E Empty, A1 G657A1, A2 G657A2, B3 G657B3, M1 OM1, M2 OM2, M3 OM3, M4 OM4, M5 OM5, S2 OS2
Fibres/Ports

12, 16, 24, 32, 48, 72, 96, 144, 288, 576
Extra Options

F Fibre Management, P Pigtails, A Adapters only
