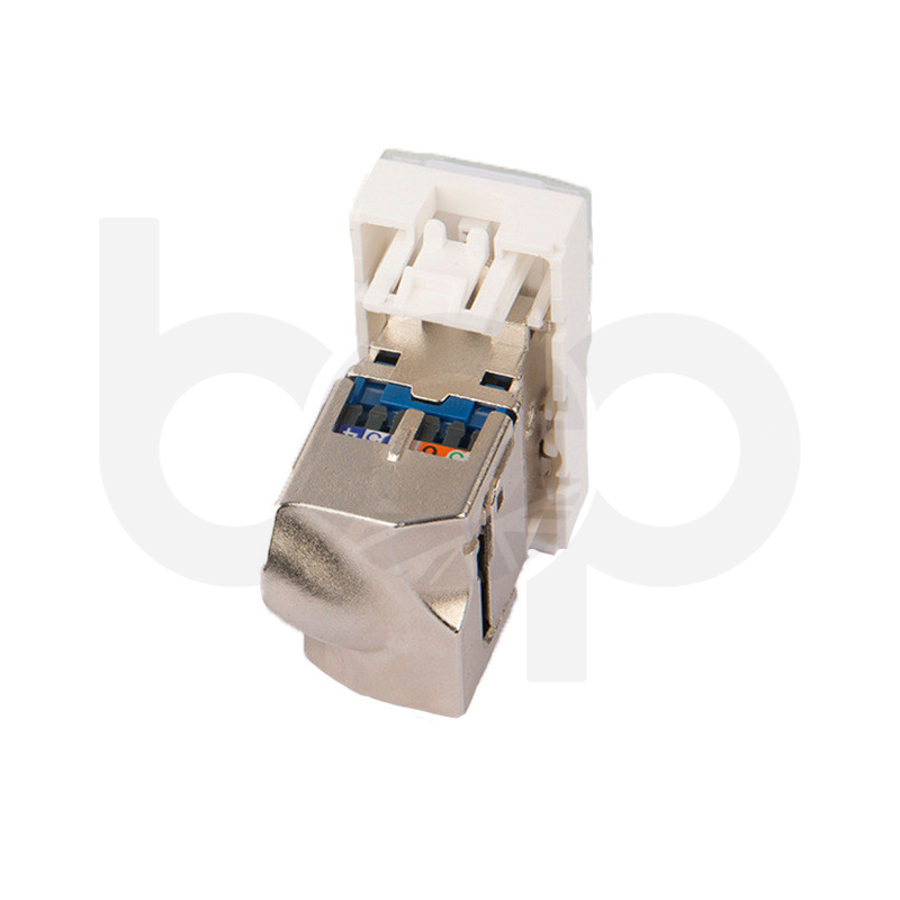

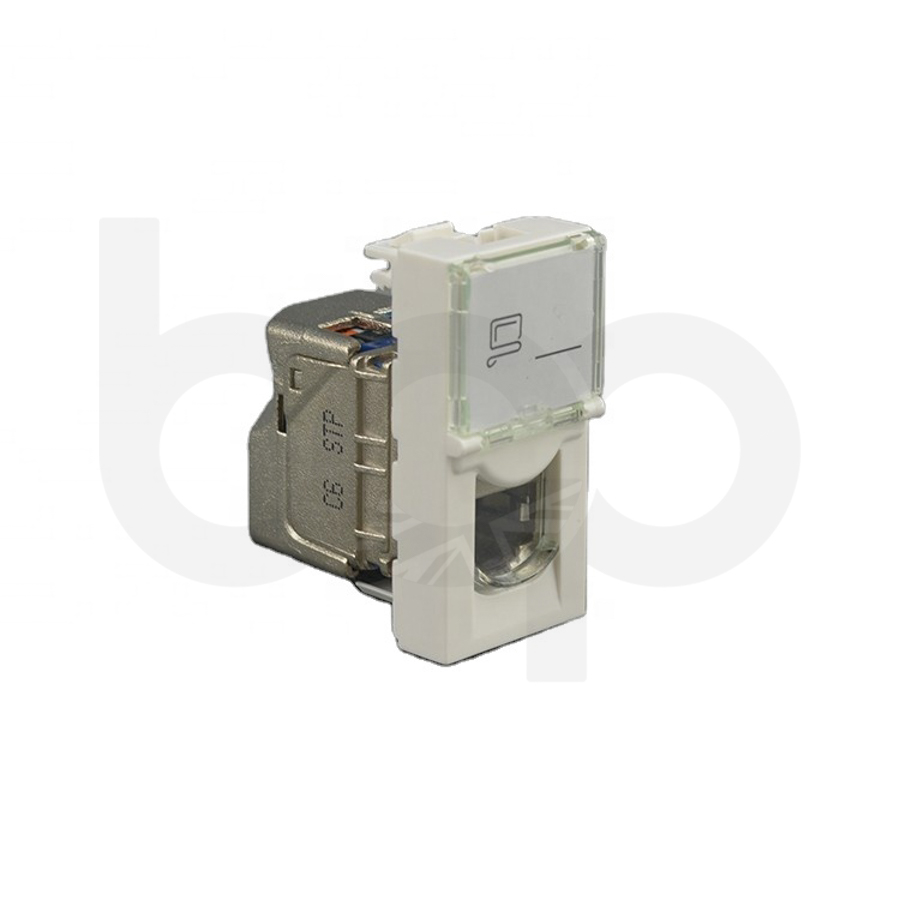

Briticom™ Category 6A Screened STP Moulded Euro module come as compact designed Keystone jacks in a module offering 360° screening. 180° tool-free use allow a very friendly and very easy-quick installation for professionals. These Cat 6A STP Modules deliver reach & exceed Category 6A Class performances supporting all applications detailed and proposed within the standards. The superior performance of these jacks is 3P Channel Verified. These Cat 6A STP Modules can be used in conjunction with various Cat6A Patch Cords and Cat 6A Cables.
Already bought this product from us? Share your experience on LinkedIn
- Full Cat6 performance 2.5Gbps
- 360° screening
- Compact and small shell
- 25 Years Warranty
- Available in different colours
- Data centre & Telecommunication networks
- LAN & Home Applications
- CATV – Cable television, CCTV
- Call centres, offices, banks
| Specifications | ISO/IEC 11801 2nd edition:2002 EN50173:2007 ANSI/TIA/EIA‐568‐B.2 |
| Wiring Specs | T568A & T568B |
| Dimensions | 16.3mm(W) x 38mm (D) x 21mm (H) |
| Installation Recommendation | Suits All type of RJ45 Face-Plates & empty RJ45 patch panels or Equipment |
| RJ45 Jack | Min life 750 insertions |
| RJ45 Jack | 50um Gold Plated contact pins |
| NEXT at 500MHz | Category 6 39.1dB @250MHz (Power Sum) |
| EL FEXT at 500MHz | Category 6 27.0dB @250MHz (Power Sum) |
| Storage Temperature Range | ‐40 to +70°C (Power Sum) |
| Operational Temperature Range | 10 to +60°C (Power Sum) |
| Jack Housing | Zinc Die-Cast alloy fully shielded |
| Front Frame | 80×80 or 80×125 |
| Empty Module | 22.5×45 or 45×45 |
| Insertion Force | 30N Max (IEC 60603-7-5) |
| Rear Support | Plastic UL94 V0 |
| Colour | White |
| White Label Space | Yes |
| Dust Cover | Yes |
| Number of Ports | 1 ~ 2 (80×80)mm or 1 ~ 4 (80×125)mm |
| Outlet Direction | Flat / Angled |
