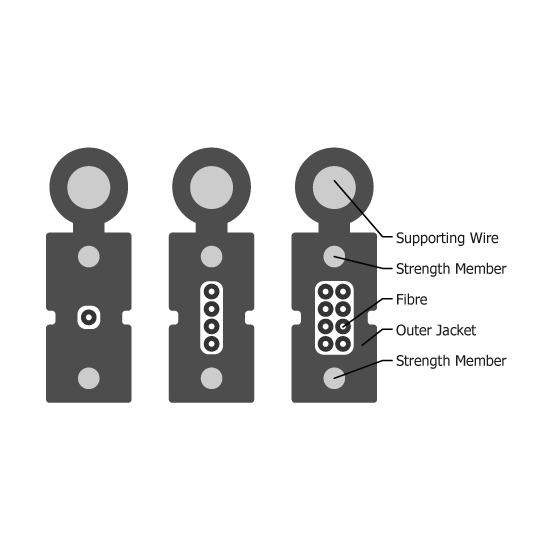

- Figure 8 Ribbon – Distribution Drop Cable
- Available in many colours
- Data centre & Telecommunication networks
- CATV – Cable television
- Fibre-To-The-Home (FTTH)
- ODFs to Wall outlets, Wall outlets to Desk
- Connections between patch panels & boxes
| Outer Sheath | PVC, PE or LSZH | ||
| Fibre Count | 1-2 | 4 | 8 |
| Outer Diameter (mm) | 5.0 x 2.0 | 6.0 x 2.0 | 6.0 x 2.0 |
| Weight per Km | 20kg | 25 kg | |
| Max Tensile Strength (N) | 690 | ||
| Min. Bend Radius (mm)
Dynamic Static |
50D 30D |
||
| Max Crush Resistance (N/100mm2) | 1000 | ||
| Operating Temp. (⁰C) | -20 to 60 | ||
