Britanic Cabling Production offers a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables – including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM.
| Outer Sheath | PE or LSZH |
| Fibre Count | 2 – 144 |
| Outer Diameter (mm) | 10.5 ± 0.5 x 17.8 ± 0.3 |
| Weight per Km | 195 kg |
| Max Tensile Strength (N) | 2500 – 4800 |
| Mini Bend Radius (mm) | 10-20H |
| Max Crush Resistance (N/100mm2) | 1000 |
| Operating Temp. (⁰C) | -20 ~ 70 |

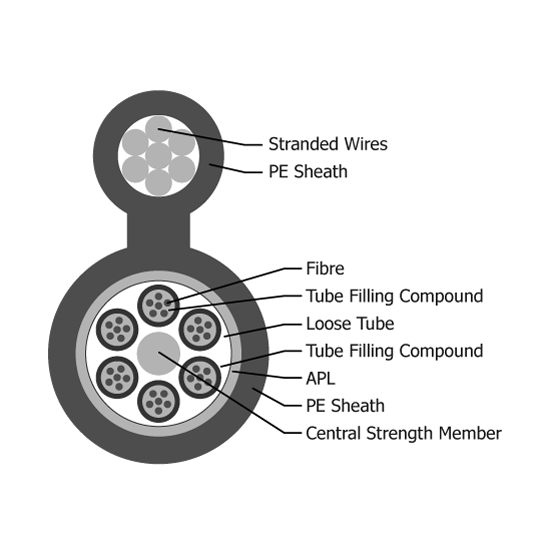

| Cable Type | ADSS, F8FR (Figure 8 with FRP), STA (Steel Tape Armoured), F8SM (Figure 8 with Steel Messenger) |
|---|---|
| Tube | ST (Single Tube), MT (Multi Tube) |
| Fibre Type | S1 (OS1), S2 (OS2), M1 (OM1), M2 (OM2), M3 (OM3), M4 (OM4), A1 (G657A1), A2 (G657A2), B3 (G657B) |
| No of Jackets | SJ (Single Jacket), DJ (Double Jacket) |
| No of Fibres | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 24, 48, 72, 98, 144, 288 |
| Material | HD (High-Density Polyethylene), PV (PVC), LS (LSZH), PE (Polyethylene), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), DJHD (Double Jacket HDPE), SJHD (Single Jacket HDPE), SJPE (Single Jacket PE) |
| Span (m) | 50, 80, 100, 150, 200, 600 |
