Britanic Cabling Production offers a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables – including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM.
| Outer Sheath | PE or LSZH |
| Fibre Count | 12 – 144 |
| Outer Diameter (mm) | 14.5 ± 0.5 |
| Weight per Km | 215 kg |
| Max Tensile Strength (N) | 1000 – 3000 |
| Mini Bend Radius (mm) | 120-340D |
| Max Crush Resistance (N/100mm2) | 3000 |
| Operating Temp. (⁰C) | -40 ~ 70 |

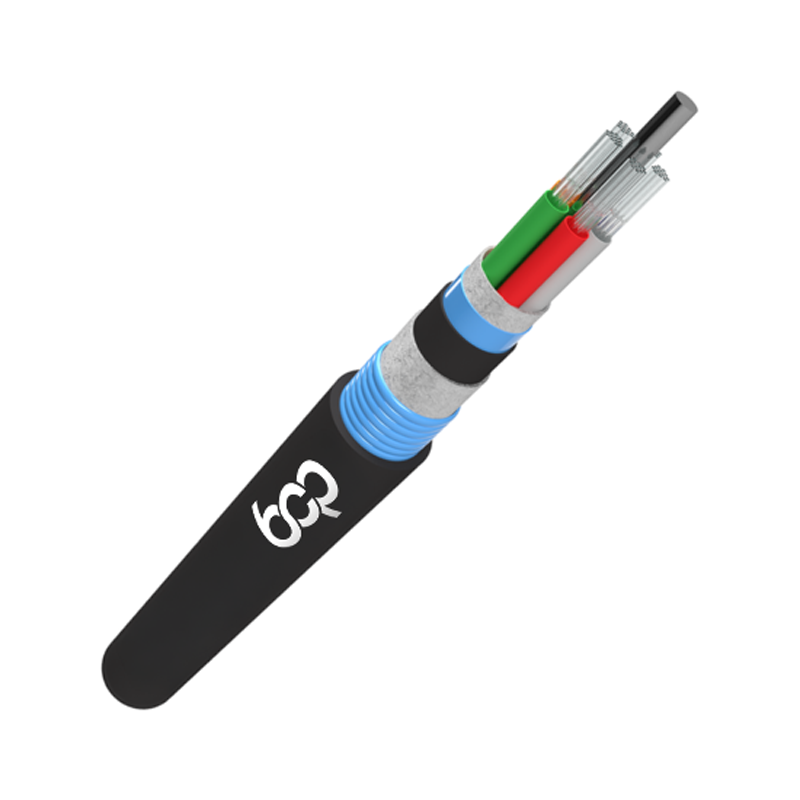

| Cable Type | ULSTA (Uni-Loose Tube Steel Tape Armoured), MTSTA (Multi-Loose Tube Steel Tape Armoured), MTDSTS (Multi-Loose Tube Double Steel Tape Armoured & Sheath), MLNA (Multi-Loose Tube Non-Armoured), ULNA (Uni-Loose Tube Non-Armoured), MTLAT (Multi-Loose Laminated Aluminium Tape), ULLAT (Single-Loose Tube Laminated Aluminium Tape) |
|---|---|
| Fibre Type | S1 (OS1), S2 (OS2), M1 (OM1), M2 (OM2), M3 (OM3), M4 (OM4), A1 (G657A1), A2 (G657A2), B3 (G657B) |
| No of Fibres | C1, C2, C3, C4, C5, C6, C7, C9, C10, C11, C12, C72, C48, C72, C96, C144, C288 |
| Material | HD (High-Density Polyethylene), PV (PVC), LS (LSZH), PE (Polyethylene), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), DJHD (Double Jacket HDPE), SJHD (Single Jacket HDPE), SJPE (Single Jacket PE) |
| Additional | DY (Dry), 2W (2 Wires), FI (Flat inside Round), SM (Steel Wire Messenger), FRPM (FRP Messenger), FRPMF8 (Figure 8 FRP Messenger), FRP2 (FRP x 2), FCM (FRP Central Strength Member), SCM (Steel Central Strength Member), Blank if none |
