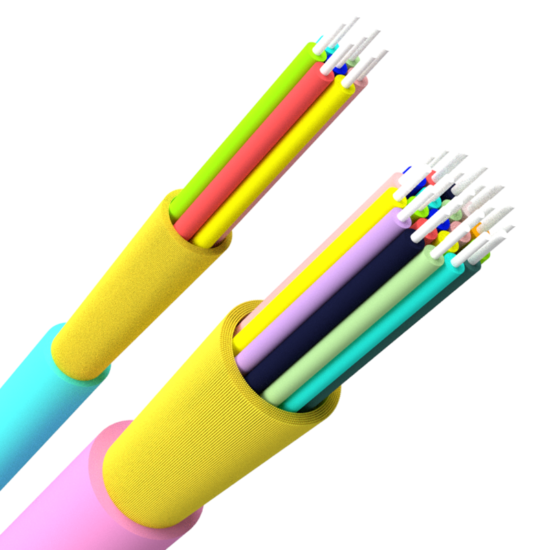

The BCP® Tight Buffered Distribution Cable has the fibres bundled together, with an outer cable jacket of the cable protecting them. The buffered fibre in distribution cable is 900μm, which is smaller in size and costs less than breakout cable. Distribution cable is usually installed in intra-building backbone and inter-building campus locations.
Already bought this product from us? Share your experience on LinkedIn
- Easy to strip with low attenuation
- Lightweight small outer diameter
- Aramid yarn strength members for high tensile strength
- Water-resistant
- Available with double sheathing
- PE and flame-retardant LSZH jacket options
- UL, CE, RoHS, ISO9001
- G.652, G.655 or 6.657 single-mode fibre. A1a or A1b, OM3 or OM4 multimode fibre and other types
of fibre - 2-24 core single-mode or multimode tight-buffer fibre
- Data centre & Telecommunication networks
- LAN Applications
- CATV – Cable television
- Fibre-To-The-Home (FTTH)
Tight Buffered Distribution Cable
| Fibre Count | 4 | 6 | 8 | 12 | 16 | 24 | |
| Outer Sheath | PE, LSZH, PVC | ||||||
| Outer Diameter (mm) | 4.8±0.2 | 5.2±0.2 | 6.2±0.2 | 6.8±0.2 | 7.4±0.4 | 8.2±0.4 | |
| Nominal Weight (kg/km) | 19 | 23 | 29 | 38 | 48 | 60 | |
| Max Tensile Strength (N) | 90-270 | 110-330 | 160-480 | 200-600 | 220-660 | 240-720 | |
| Mini Bend Radius (mm) | 10-20D | ||||||
| Max Crush Resistance (N/100mm2) | 1000 | ||||||
| Operating Temp. (⁰C) | -20 to 70 | ||||||
